Product description:
The components, plastic optical fiber module and industrial control connector designed by AVAGO have been widely used in field bus, process control and digital control in industrial control. Many factory internal control networks connect controllers with equipment and sensors to monitor data and provide simple control feedback to the production line.
With the Profibus, Interbus,ControlNet and SERCOS standards using plastic optical fiber in the electromagnetic noise and strict environment, as the transmission medium, POF can be connected to RS232, RS422, 100Mbps Ethernet, token network and other standard protocol interfaces through the converter. Thus, it can provide stable and reliable communication lines in the harsh industrial manufacturing environment, transmit industrial control signals and instructions at high speed, and avoid the danger of communication interruption caused by electromagnetic interference in the use of all owned cable lines. For plastic optical fiber, because of its outstanding electrical "noise" immunity, it has become a very competitive product to replace copper cable in industrial control bus system and automobile automation application field.
Product Features:
◆ Anti-electromagnetic interference and electromagnetic radiation.
◆ Good flexibility and anti-vibration can ensure zero error rate transmission under any circumstances.
◆Resistant to high and low temperatures (- 40 to 70 degrees Celsius).
◆It is easy to install and does not need maintenance.
◆Plastic optical fiber does not conduct electricity, can share power transmission lines, long-distance power supply. It conforms to Agilent Universal connection system.
Scope of application:
◆ Data transmission and industrial automation control bus system.
◆ Industrial robot intelligent system and servo system.
◆ Communication switching system.
◆ Digital multimedia system.
◆ Medical sensing system.
◆ Power system, etc.
product Features:
◆ The original imported AVAGO standard connector ensures safety, firmness and efficient optical coupling, and is highly versatile.
◆ Original imported Japanese optical fiber can ensure maximum data transmission.
◆ Accurate polishing and grinding, the outer wire is made of PE, PVC, etc. The material is anti-wear, anti-corrosion and anti-stress.
◆ No conductive, no electromagnetic interference radiation, to ensure good data communication quality and data security.
◆ Exceeding industry standard assembly process, complex processing of multiple strands of optical cable, can transmit multiple data at the same time, reduce costs.
Performance specifications:
◆ Interface type: HFBR 4503Z-4513Z
◆ Core material diameter: Φ1.0;
◆ Core material: imported Japanese optical fiber
◆ Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm
◆ Outer cover material: CPE, PE, PVC
◆ Outer cover color: fog black, other colors can be customized
◆ Attenuation: less than 180dB / km
◆ Working temperature: -55 ℃-+ 85 ℃
◆ Standard length: 1000mm, any size from 0-100m can be customized
◆ Comply with standards: European ROHS certification, CE certification.

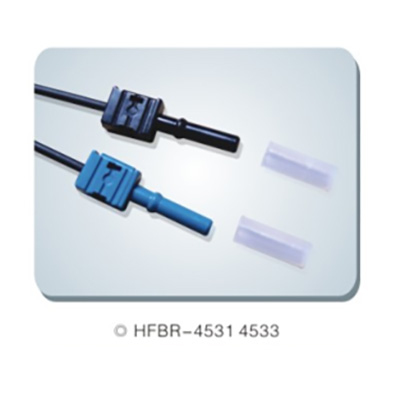

Structure diagram:
